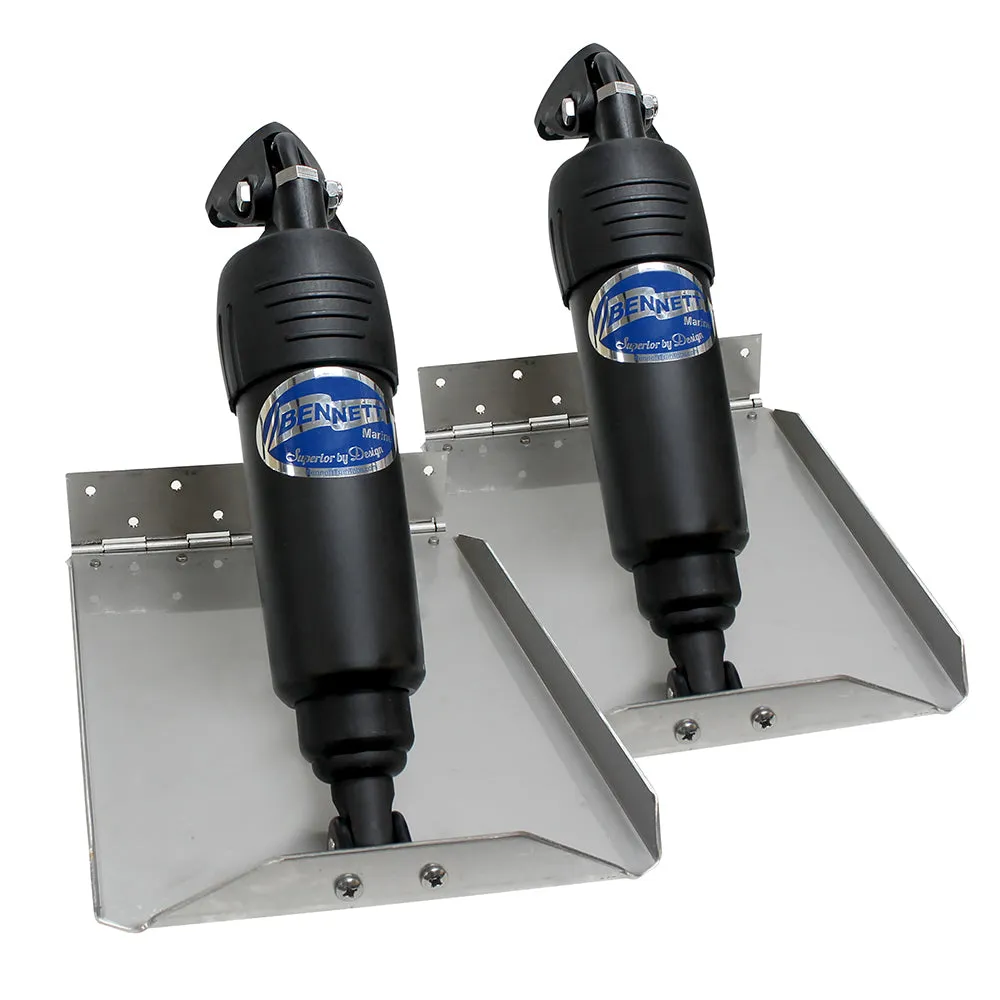

912ED Electric - Edge Mount Limited Space Trim Tab Kits - 12V

9" x 12"

Designed with an adjustable upper hinge for transoms with limited vertical space. Tabs turn up for added strength and feature piano-hinged backing plates.

Kits Include:

• (2) 12-volt adjustable upper hinge actuators with 6' wire harnesses and waterproof connectors (BEA3000)
• (2) Stainless steel trim planes (tabs) and mounting plates
• (2) 20' wire harnesses with waterproof connectors (BAW2020)

Features Include:

• Requires less than 6.5" of vertical transom space to install
• Superior seal design inspired by over 50 years of Bennetts proven success in actuator manufacturing excellence
• Controls sold separately

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications:

• Construction: Stainless Steel
• Actuator Type: Electro-Mechanical
• Box Dimensions: 7"H x 14"W x 15"L WT: 19.8 lbs
• UPC: 666285600306
