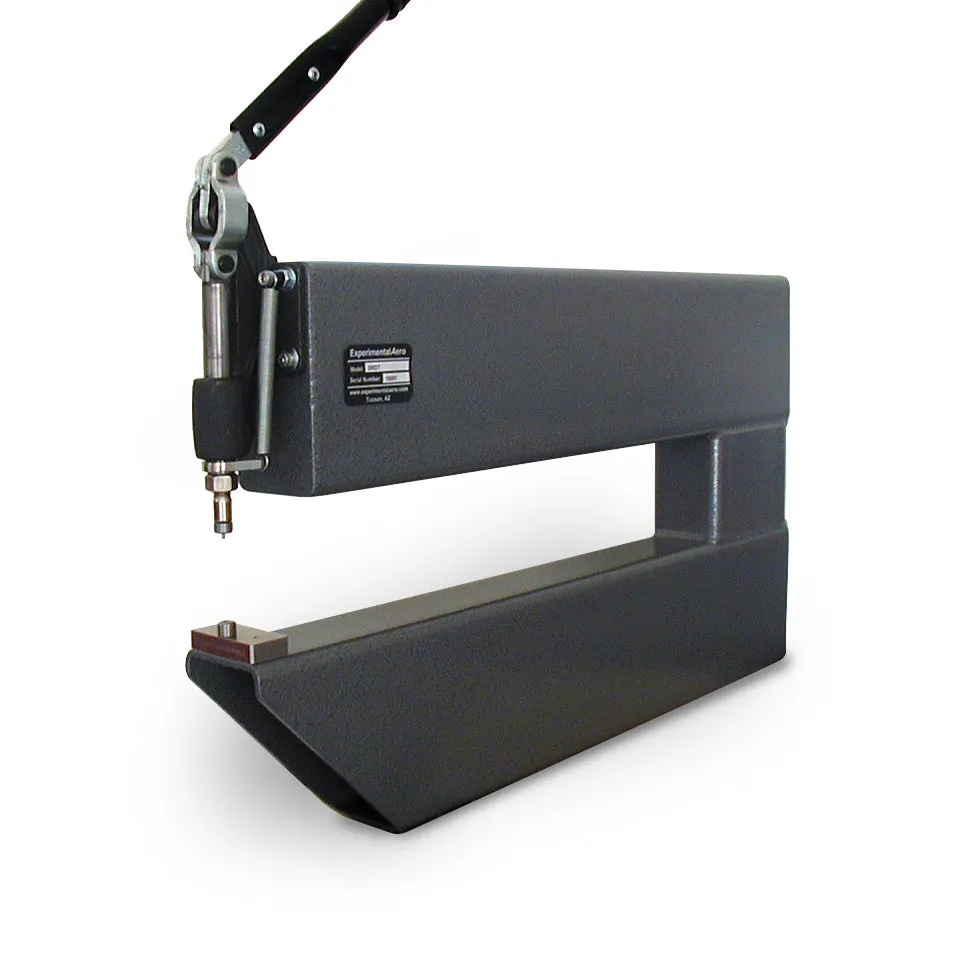

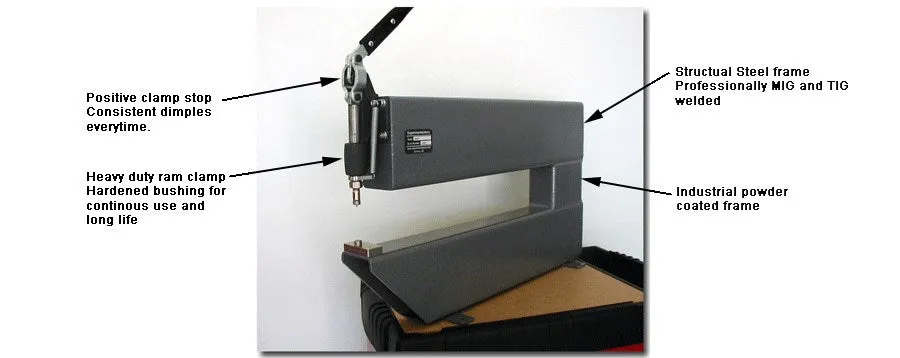

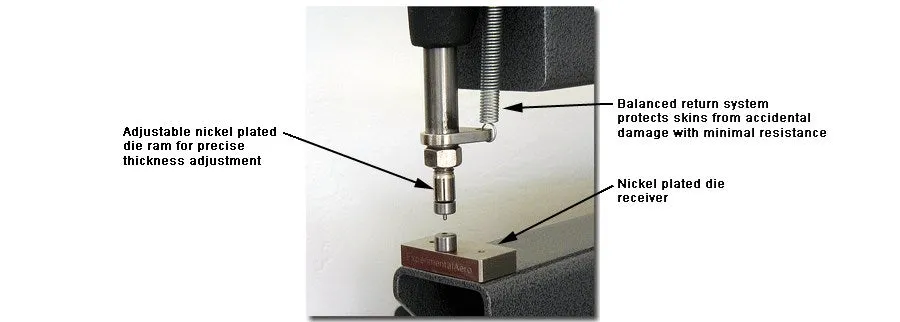

DRDT-2 (Dash 2) is a welded steel c-frame rivet dimpler. With its simple mechanical advantage, dimpling is virtually noise free. With a fully adjustable die holder you can achieve consistent and accurate dimples. The DRDT-2 incorporates a new low force spring return system that prevents skin damage from the accidental release of the handle without increasing the force required to dimple. 22 throat depth allows dimpling of up to 44 wide sheets. The relief under the lower frame member provides dimpling access to spars, ribs, leading edge skins.
The DRDT-2 is powder coated and comes ready to dimple (minor assembly required).
Operational note: The DRDT-2 weighs approximately 55 lbs. and should be clamped securely to a sturdy work surface.
Specifications
Weight: 55 lbs.
Size: 28x16x3
Capacity: Up to 22" depth
Gap: 4
Skin thickness: Up to 0.040 Aluminum.
Dimple Dies: 3/16 shank Diameter (Industry standard) **
Shipping
This item drop ships from supplier. See notes and link below for shipping estimates and times.
UPS Ground Shipping Time (Business Days)
***Shipping cost estimates (using details below) will be determined based on UPS Ground fees (or UPS if cheaper within the US).
You can access the UPS Ground shipping time estimates at
Declared/Insured Value: $400
